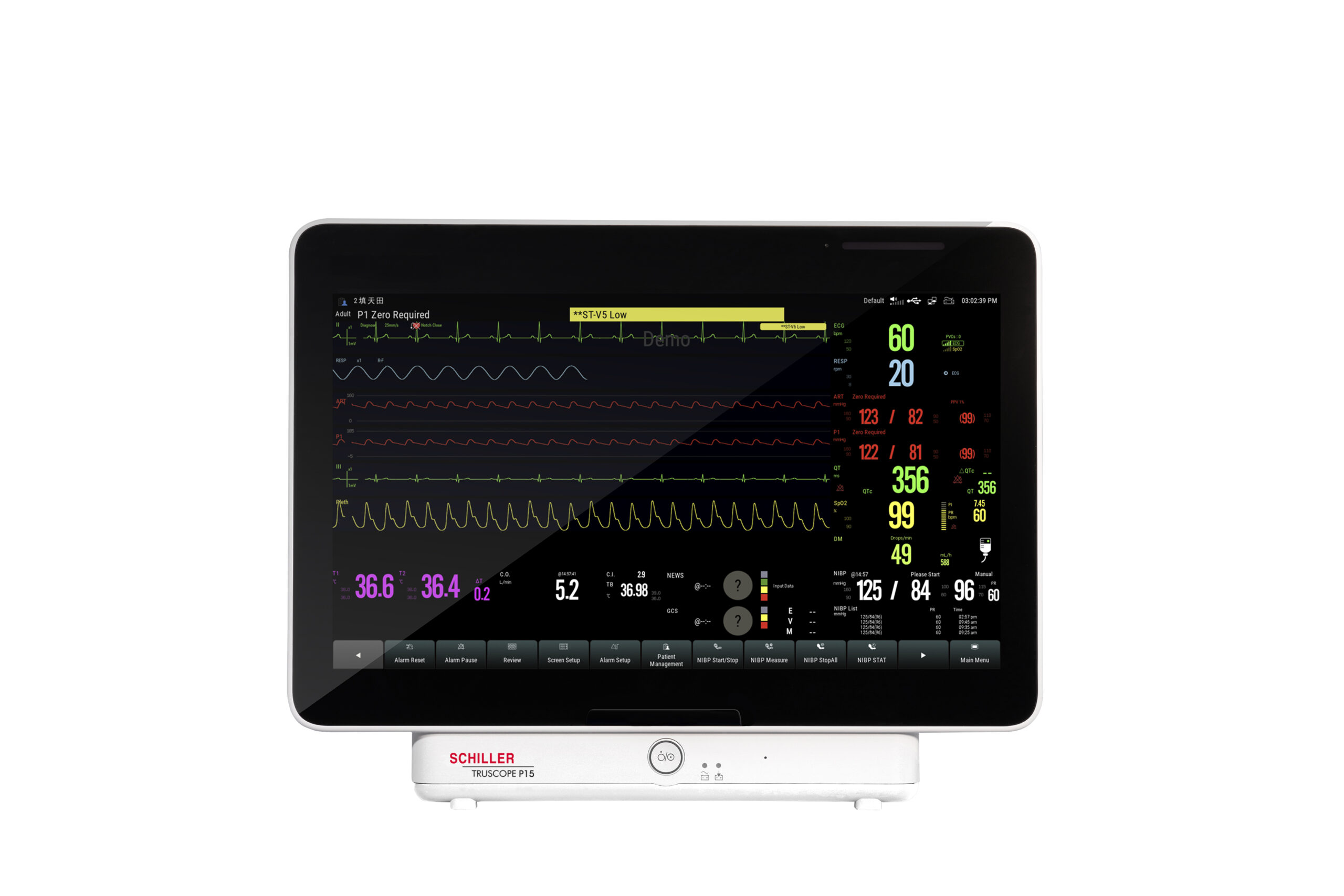

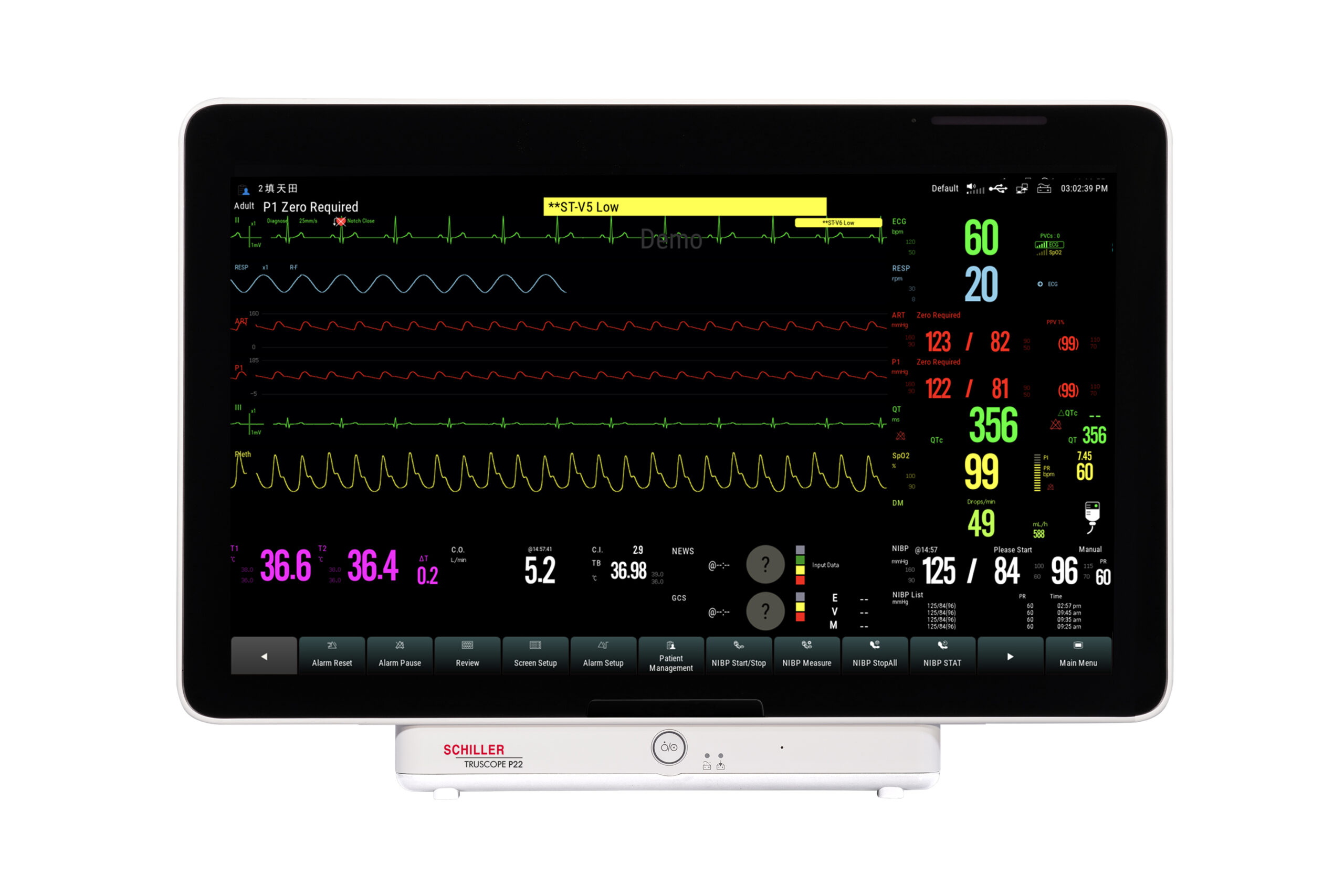

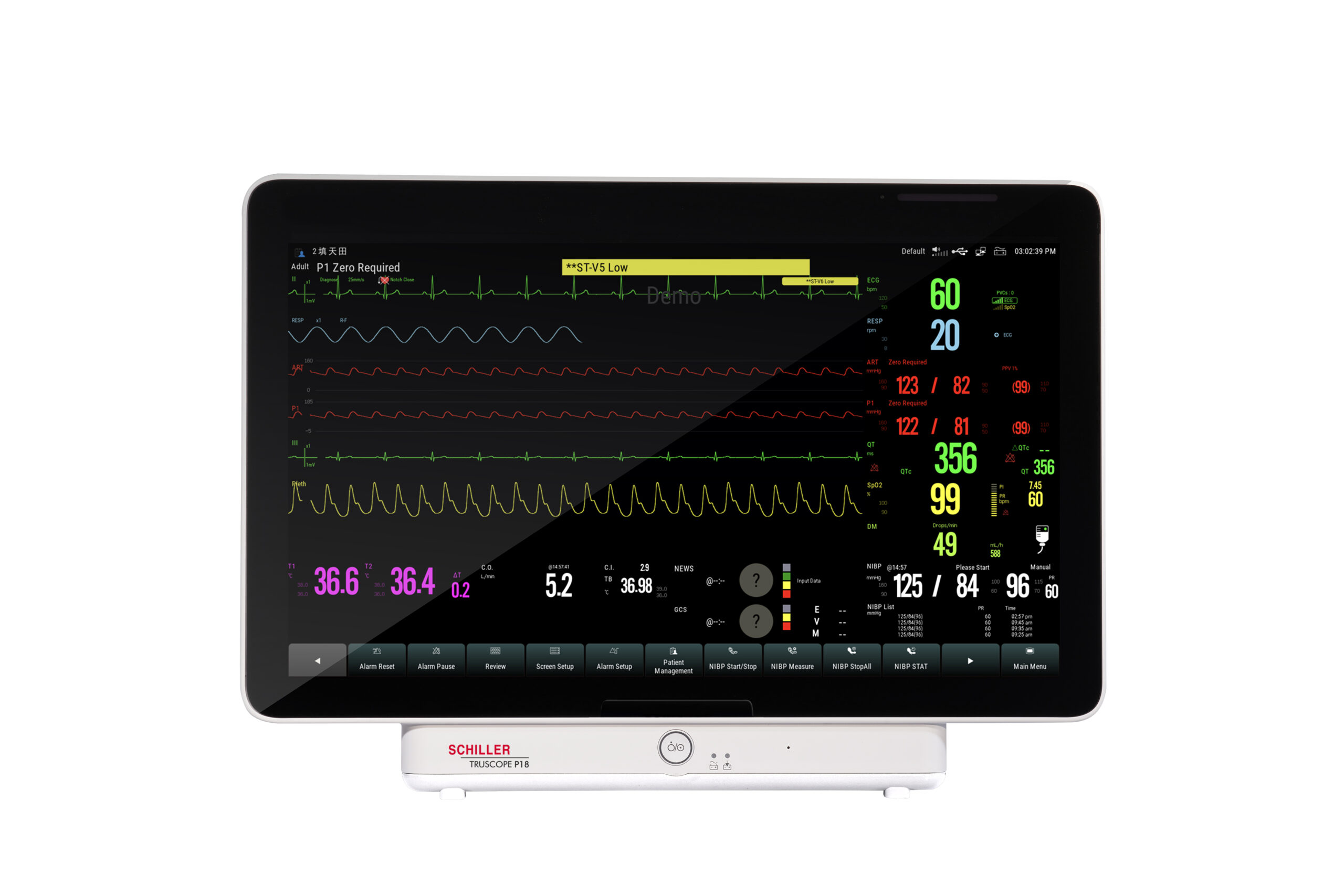

TRUSCOPE P Series

Features

• 12.1” / 15.6” / 18.5” / 22” Colour TFT touch screen
• Full capacitive touch screen with multi-finger gesture support
• Integrated P1 transport monitor with 5.5” touch screen and built-in 8 hours battery back-up
• 4 to 6 Modular Slots available for various modules
• 3 to 12 lead ECG display
• Total 12 simultaneous waveform display
• 8 numbers of various screen configuration
• ST analysis with ST mapping
• 27 types of arrhythmia detection
• QT/QTc measurement function
• Various calculations: Drug Calculation, Hemodynamic Calculations, Oxygenation Calculation, Ventilation Calculations, Nephridium Calculation
• Advance tools: Respiratory Mechanics with FV Loop, EWS (Early Warning Score), GCS (Glasgow Coma Scale), Sepsis View, BOA (Balance Of Anesthesia- Focus on relevant parameters over the course of surgery)
• Parameters for High-end Units: NMT, rSO2 (Regional Oxygen Saturation Index), EEG, AG, CO2, BIS, RM (Respiratory Mechanics), ICG, IBP & CO
• Advance seamless network connection: EMR, HIS
• Battery back-up: P1 – 4 hours with single and 8 hours with dual battery, P12 more than or equal to 4 hour, P15/ P18/P22 more than or equal to 3 hours
• Unique drip monitoring
• Large data storage capacity: 180 hours trend data, 3000 parameter alarm event, 3000 ARR events, 2400 groups NIBP measurement, 72 hours Holographic waveform
• Compatible with all kinds of Mouse, Keyboard, and Barcode scanner

OPTIONAL

• 12 lead ECG monitoring
• External DBI display
• Wi-Fi Communication module
• Transport handle and docking station
• Auxiliary extended module slot
• Thermal Recorder
• Rolling Stand / Wall mount
• Central Monitoring system : Wired & WiFi

Optional Modular Upgrade

• Dual Temperature module
• Dual IBP module
• Masimo & Nellcor SPO2 module
• rSO2 module
• Respiratory Mechanics module
• Main-Stream, Side-Stream & Micro-Flow CO2 module
• Main-Stream & Side-Stream AG module
• ICG module
• C.O. module
• EEG module
• BIS module
• NMT module
• Drip Monitoring Module
