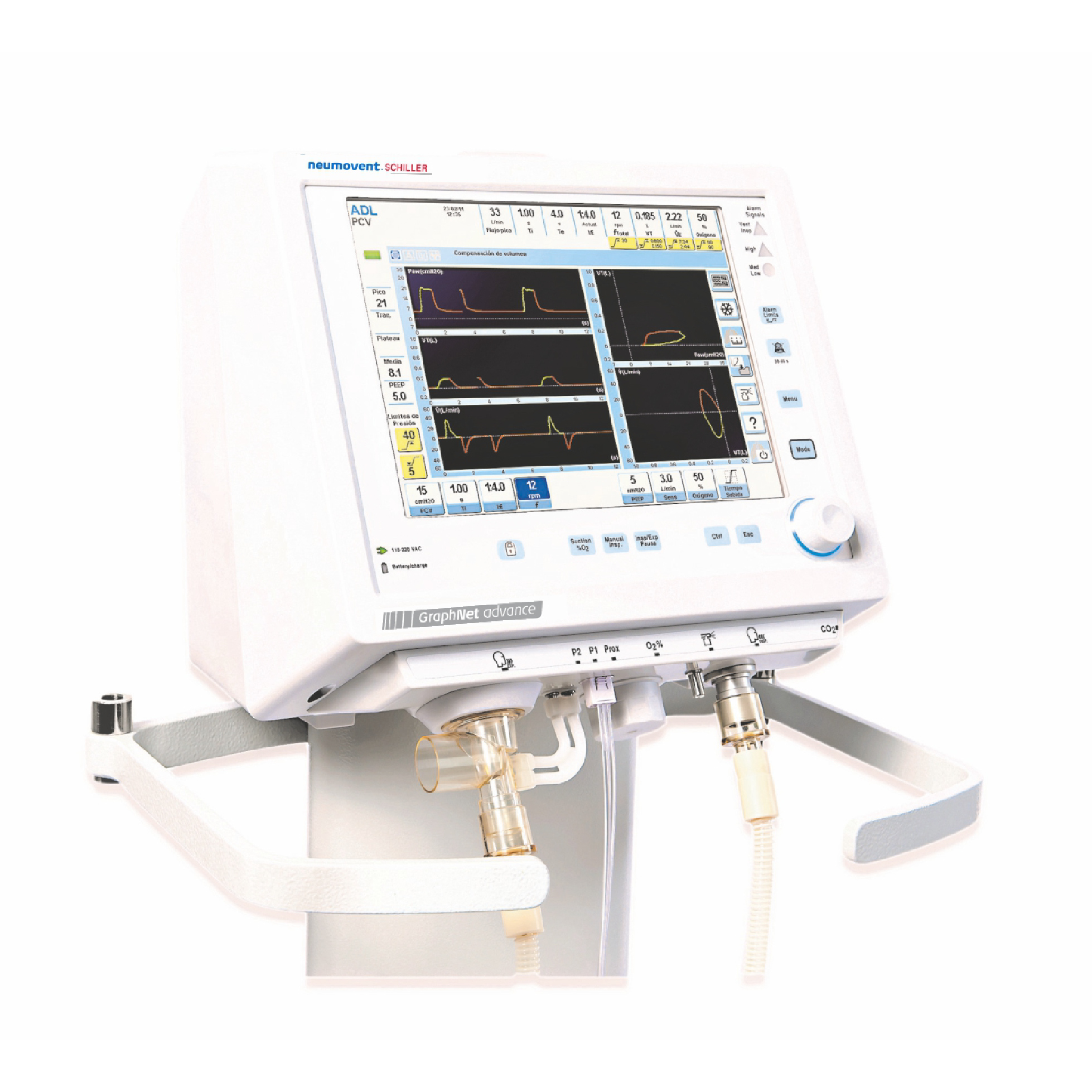

GRAPHNET advance

Ventilator for ICU

Universal-Adult, Pediatric & Neonatal Ventilator
High-end mechanical ventilator that provides invasive and non-invasive ventilation, adaptable to any patient category.
12″ touchscreen displays waveforms & loops simultaneously

Get A Quote Request A Demo

This product is currently out of stock and unavailable.

Speak with an Expert

Features

  • 12.1” TFT- LED colour touchscreen display to view waveforms & loops simultaneously
  • Proximal Flow Sensor for neonatal patient category
  • Advanced modes like PRVC, SIMV (PRVC) + PSV, APRV, MMV + Pressure Support, PSV + assured volume, VSV
  • AVA – Adaptive Ventilatory Assistance
  • High Flow Oxygen Therapy (HFOT / HFNC)
  • Dedicated neonatal ventilation modes like TCPL, SIMV (TCPL) + PSV, N-CPAP, Non-Invasive Ventilation
  • Tidal volume correction according to BTPS
  • Endo tracheal tube, altitude and circuit compliance compensation & leak compensation in all modes
  • Integrated nebulizer (Volume Compensated & Inspiratory Synchronize)
  • Advanced Lung Mechanism Calculations: Auto-PEEP and trapped Volume, WOBi, Exp. Time Constant, P/V Flex Monitoring, Slow Vital Capacity, Pi Max (NIF), Physiological Dead Space, Oxygen Index PaFi
  • SBT – Spontaneous Breathing Trial
  • Stress Index
  • Suction % O2 for suction sequence with variable FiO2

Optional

  • Capnography (Mainstream) – Curves of CO2 / Time and 2 Volumetric Capnography (CO2 / VT), Measurements of
    EtCO2 Alveolar Ventilation, Dead Space, CO2 Elimination (VCO ), VD / VT Ratio, CO2 expired volume (VTCO2 )

SCHILLER reserves the right to make changes in design, specifications and features shown, or discontinue the product described at any time without notice or obligation. In representative. Device availability in your market is subject to regulatory approval
